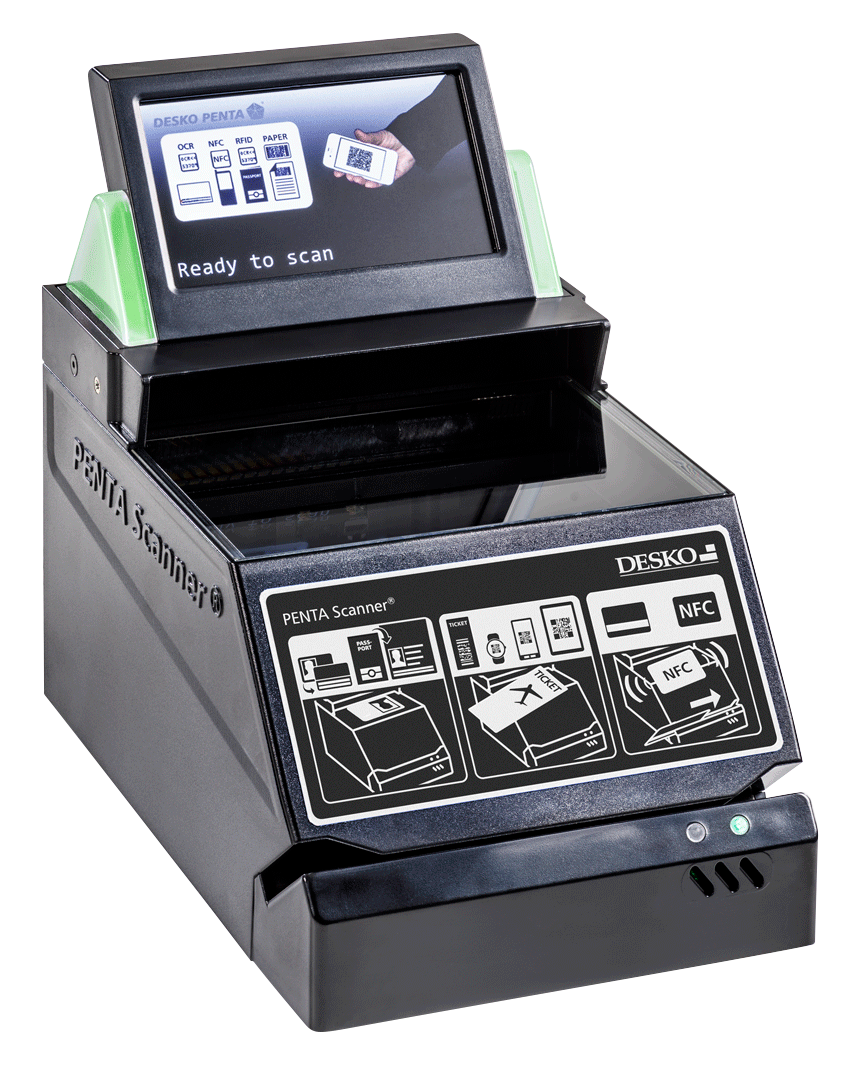

DESKO PENTA Scanner^® BGR

Multi-functional boarding gate reader

Make the boarding process even more convenient and efficient for your passengers and ground staff. The DESKO PENTA Scanner^® BGR was specifically developed for this task as a boarding gate reader. The extra-large scan window for reading the barcodes on boarding passes and the full graphics display are hallmarks of the PENTA Scanner BGR. The display provides direct and clear feedback to passengers or employees, simplifying the work process. The scanner also impresses with tried-and-tested DESKO PENTA technology for reliable and fast reading of ID documents. As a result, the PENTA Scanner BGR meets all the expectations for secure ID and access control and ensures a smooth boarding process.

The advantages for you at a glance

Multifunctional DESKO PENTA technology

OCR/MRZ module for reading barcodes and magnetic stripe cards and (optional) NFC and RFID module in a single device.
Extra-large scanning window

Extra-large scanning area for greater convenience.

Length: 94 mm (3.70 inches)
Width: 131 mm (5.16 inches)
Extra-large, color display

For clear user feedback.
Various applications

The perfect all-in-one solution for boarding, check-in and security control: at the gate or as a self-service terminal.
Reliable image and data capture

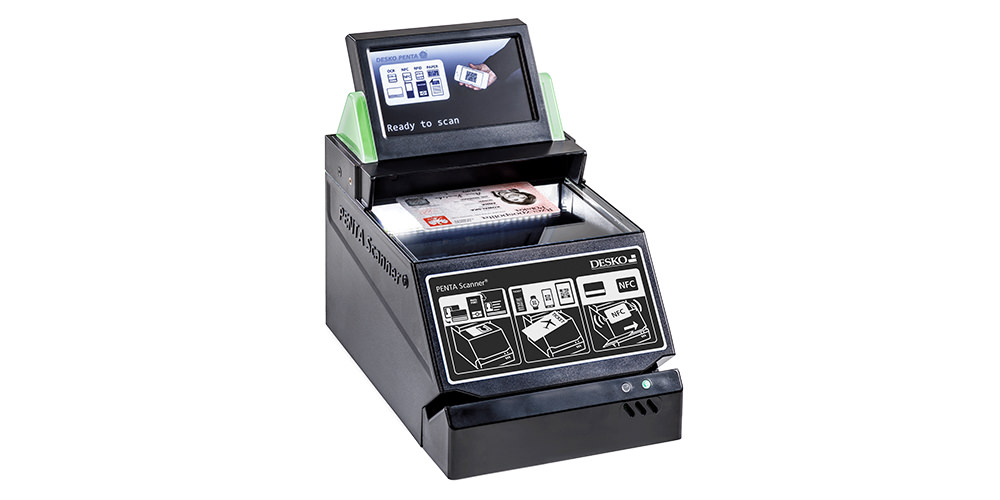

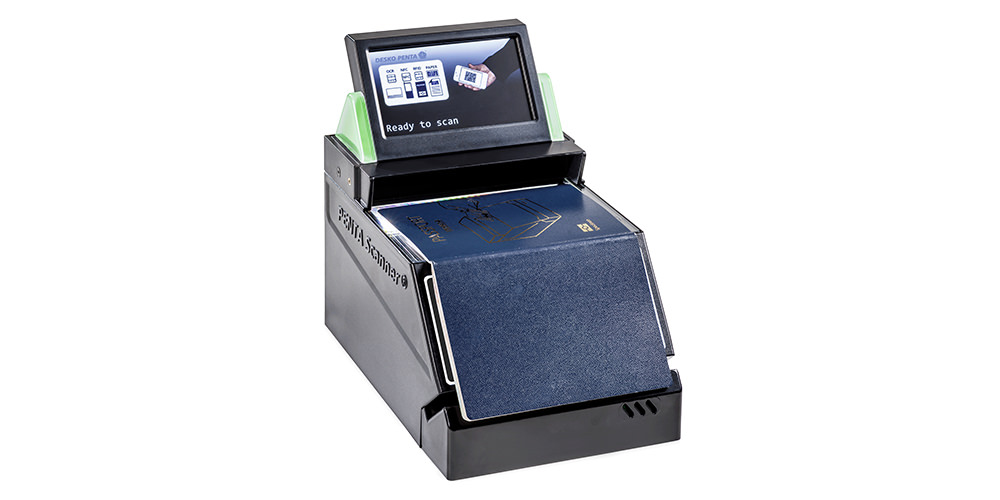

For fast and reliable reading of ID documents such as ID cards, passports, boarding passes and other documents.
Auditory and visual feedback

Buzzer and multi-colored LEDs for clear go or no-go feedback
Sturdy Design

Stable housing and scratch-proof safety glass.
Standalone device

Integrated PC (optional equipment) with WLAN connection or battery operation (up to 10 hours).

Discover all the options that DESKO’s PENTA Scanner BGR offers you. What are your requirements for boarding?

Innovative technologies for maximum safety

Multifunctional technologies ensure that the PENTA Scanner BGR fulfils your requirements at the airport. The device features OCR as standard for optical character recognition in the machine-readable zone (MRZ) of ID documents. Images are captured under three different light sources (visible, infrared and optional UV light).

Various light sources

The transfer of image data is accomplished using two or three different light sources. By default, the device is equipped to work with visible light and infrared light. This enables the PENTA Scanner BGR to read the machine-readable zone (MRZ). It is also available with UV light as an optional feature. This is necessary in order to reveal the “hidden” security features on the document. In combination with the right authentication software, this enables reliable ID authentication.

OCR technology

As a standard feature, the device operates using OCR for optical character recognition, reliably reading all data from the machine-readable zone (MRZ), for example on IDs.

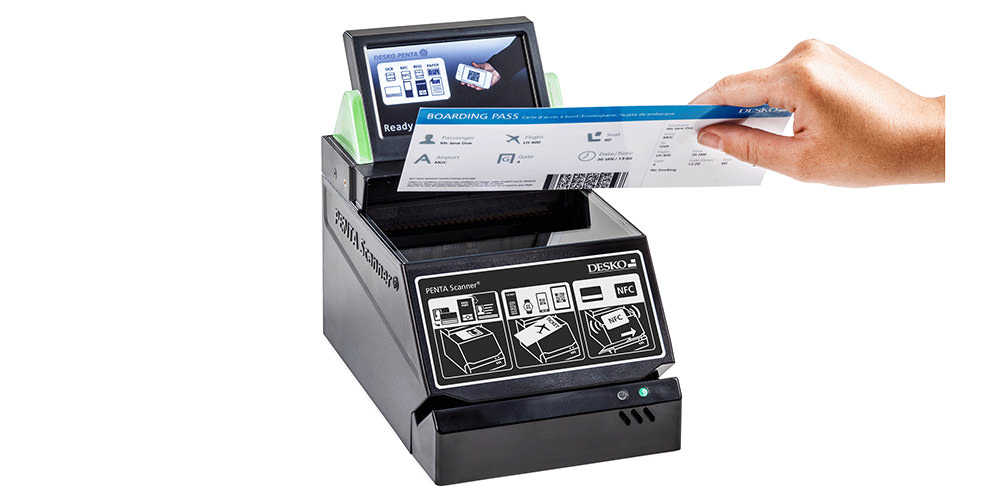

Barcode reader

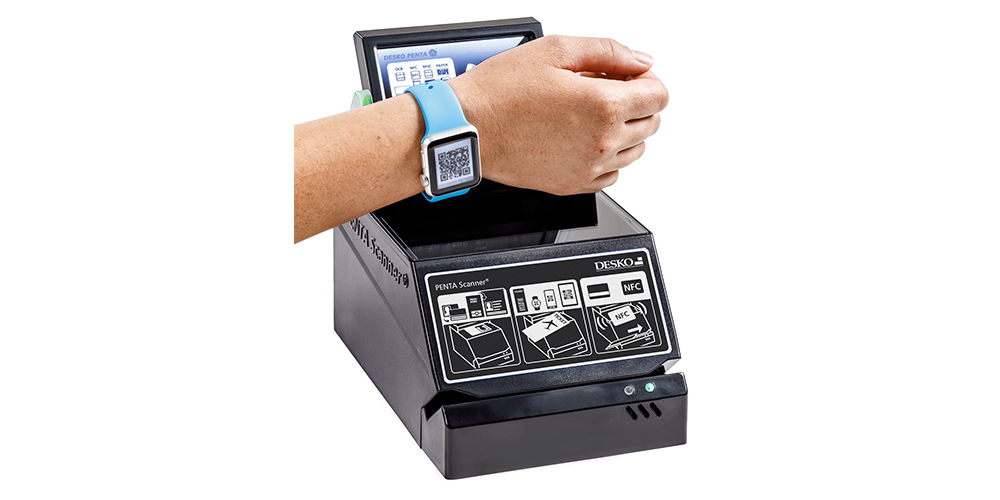

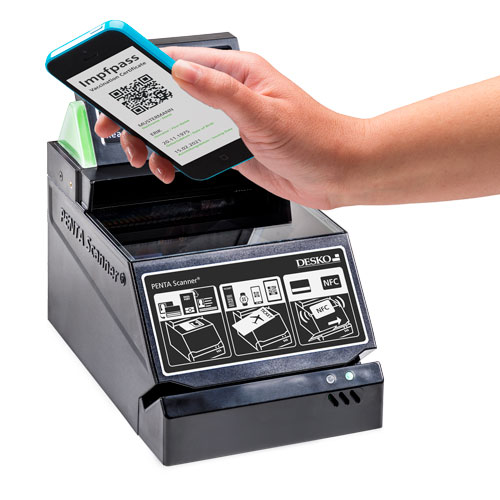

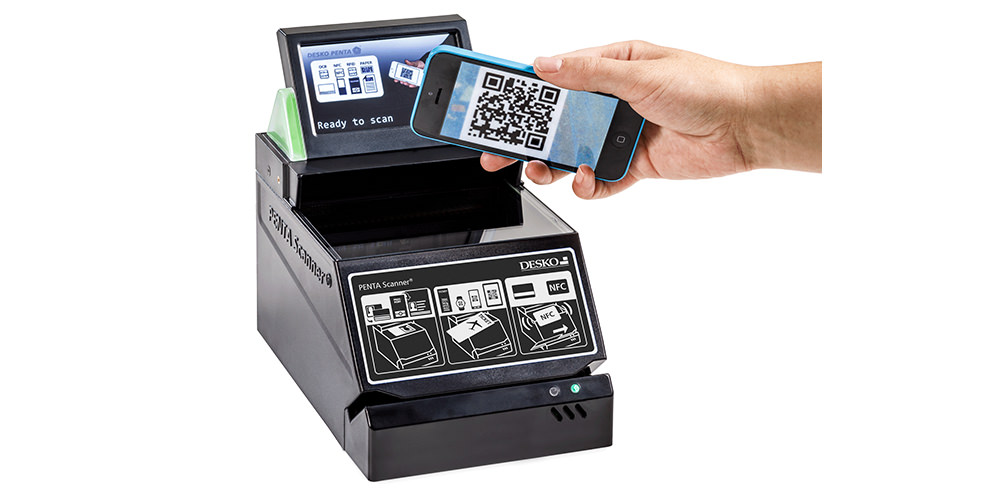

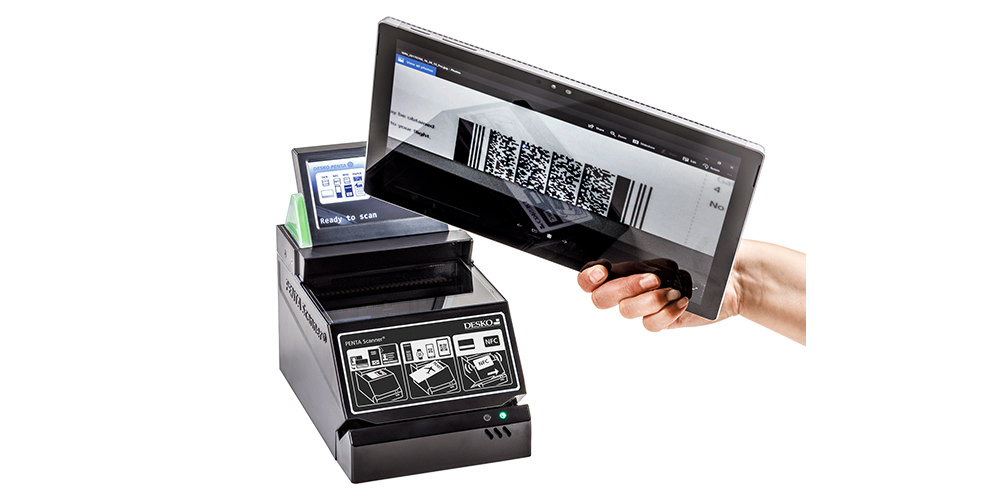

Barcodes, for example on boarding passes, can be read either from paper or from digital displays.

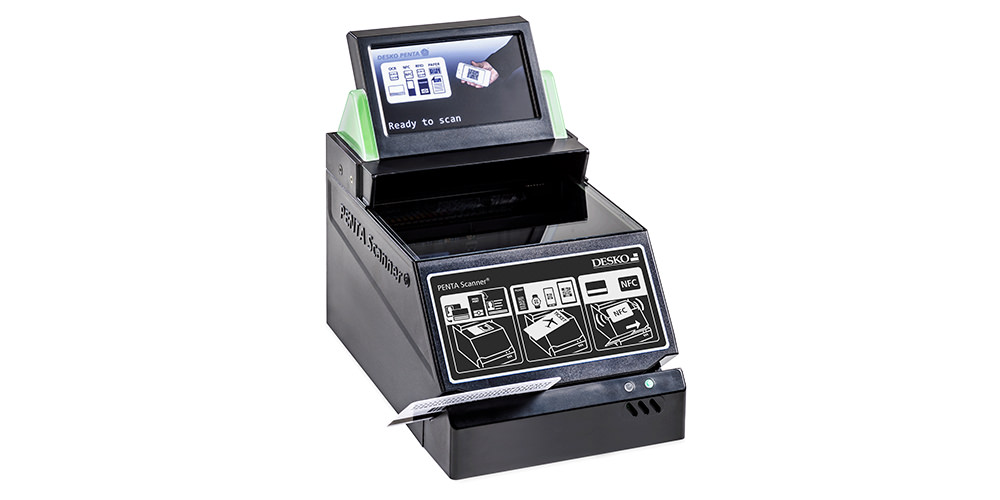

Magnetic stripe reader

A bidirectional magnetic stripe reader captures cards with magnetic stripes such as frequent flyer cards and credit or debit cards

RFID

To read RFID chips (Radio Frequency Identification), for example in biometric passports, an optional RFID module can be installed.

NFC

For contactless data capture, for example from employee IDs, the device can be equipped with an NFC module (Near Field Communication).

To be used as a free-standing self-service terminal

Are you looking for an independent stand-alone solution? Expand the PENTA Scanner BGR with an integrated PC that can be used separately from your stationary PC thanks to WLAN and a powerful rechargeable battery. This gives you the option of using the scanner at any time and place. The versatile installation kits from DESKO support flexible mounting – on guidance systems, desks or counters. The DESKO PENTA Scanner BGR impresses with its compact, solid construction, scratch-proof safety glass and of course its excellent ease of use.

Equipment

Standard equipment
- OCR technology for optical character recognition of the machine-readable zone (MRZ) of documents such as IDs, passports
- Light sources: Infrared and visible light
- Magnetic stripe reader (MSR): A bidirectional swipe reader to read cards with magnetic strips, e.g. frequent flyer cards, bank cards and credit cards
- Barcode reader: For scanning 1D and 2D barcodes on paper and digital displays (smart watches, smartphones, tablets), e.g. boarding passes, airline tickets
- Safety glass on scan area
- Display: 4.3” full graphics display
Optional equipment
- Light sources: UV-A light for checking security features
- RFID module (Radio Frequency Identification): To read biometric passports
- China ID reading module: An integrated RFID module specifically for reading Chinese IDs
- NFC module (Near Field Communication): For contactless reading of e-tickets, for example
- Integrated PC: With WLAN for independent use without stationary PC
Download

You can find more information in our data sheet. Download now!

Data sheet DESKO PENTA Scanner® BGR (pdf, 459.1 kB)
